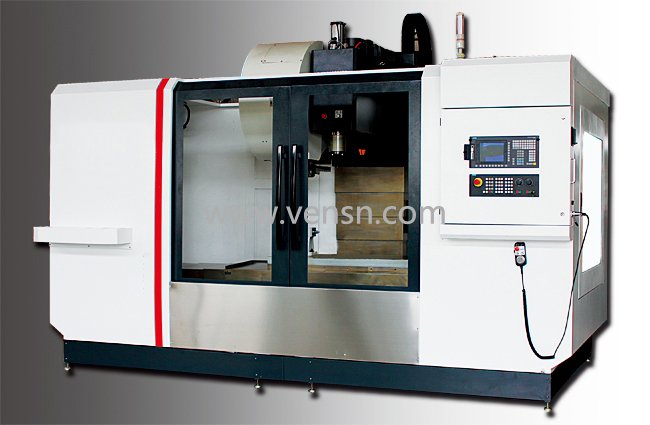

产品型号 |
Model |
VSF500 |
VSF600 |
|
产品编号 |
Code No |
L1150000 |
L1160000 |
|
机床电器 |
Electric Supply |
|
|
|
总功率 |
Total connection |
24KW |
24KW |
|
主电机功率 |
Driving motor power |
12KW |
12KW |
|
冷却泵功率 |
Coolant pump power |
370W |
370W |
|
电机扭矩（X轴、Y轴、Z轴） |
Torque motor(X,Y,Z axis) |
16/16/16Nm |
16/16/16Nm |
|
主轴 |
Spindle |
|
|
|
主轴锥度 |
Spindle taper |
BT40 |
BT50 |
|
主轴转速 |
Spindle Speed |
8000RPM |
6000/8000RPM |
|
主轴中心到立柱表面距离 |
Distance spindle-column |
700mm |
760mm |
|
*大面铣直径 |
Face milling dimension (Max) |
Ø90mm |
Ø110mm |
|
*大立铣直径 |
End milling dimension (Max) |
Ø50mm |
Ø55mm |
|
刀库 |
Magazine |
|
|
|
刀库容量 |
Capacity |
24 tools |
24 tools |
|
*大刀具尺寸(满刀/邻空刀） |
Tool diameter (Max) |
Ø 78mm(with adjacent tool)
Ø120mm |
Ø112mm(with adjacent tool)
Ø200mm |
|
*大刀具重量 |
Tool weight (Max) |
8KG |
18KG |
|
换刀时间 |
Time-tool changing |
2.5 Seconds |
3.5 Seconds |
|
工作台 |
Table |
|
|
|
工作台尺寸（长×宽） |
Table length×width |
1360×650mm |
1400×700mm |
|
主轴端到工作台面距离 |
Distence spindle-table |
120-770mm |
160-860mm |
|
T型槽(槽宽/间距/数量) |
T-slot(size/distance/number) |
18mm/110mm/5 |
18mm/110mm/5 |
|
*大承载重量 |
Load(Max) |
1100KG |
1200KG |
|
行程 |
Travel |
|
|
|
X轴 |
X axis |
1100mm |
1200mm |
|
Y轴 |
Y axis |
650mm |
700mm |
|
Z轴 |
Z axis |
650mm |
700mm |
|
快移速度（X轴、Y轴、Z轴） |
Rapid feed(X,Y,Z axis) |
24m/min |
18m/min |
|
精度 |
Accuracy |
|
|
|
定位精度 |
Positioning accuracy |
±0.01mm |
±0.01mm |
|
重复定位精度 |
Repeat positioning accuracy |
±0.005mm |
±0.005mm |
|
尺寸 |
Dimensions |
|
|
|
外形尺寸(L×W×H) |
Overall dimension(L×W×H) |
3150×2550×2850mm |
3680×2950×3510mm |
|
包装尺寸(L×W×H) |
Packing size(L×W×H) |
3300×2680×3150mm |
4090×3290×3650mm |
|
净重/毛重 |
Net weight/Gross weight |
7300/8300KG |
8500/9700KG |
|
水箱容积 |
Tank capacity |
280L |
300L |
