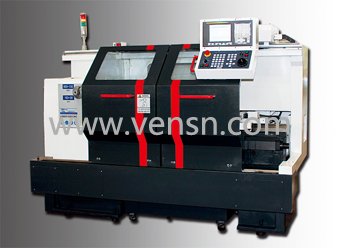

数控系统：华中系统、广数系统、法那克系统、西门子系统等可根据用户选配。
|
型号 |
Model |
VSL560 CNC x 1000/1500 |
VSL660 CNC x 1500/2000 |
|
产品编号 |
Code No. |
C1356000/C1356100 |
C1366000/C1366100 |
|
加工范围 |
CAPACITY |
|
|
|
床身上*大工件回转直径 |
Swing over bed |
ø560mm |
ø660mm |
|
拖板上*大工件回转直径 |
Swing over cross slide |
ø355mm |
ø440mm |
|
两顶尖中心距 |
Admits between |
1000mm/1450mm |
1500mm |
|
主轴 |
SPINDLE |
|
|
|
主轴端部 |
Spindle nose |
D1-8 |
D1-8 |
|
主轴通孔直径 |
Spindle bore |
ø80mm |
ø105mm |
|
主轴内孔锥度 |
Taper of spindle bore |
MT7 |
ø113(1:20) |
|
主轴转速范围 |
Range of spindle speed |
32-2000 rpm |
15-1500 rpm |
|
进给 |
FEEDS |
|
|
|
X轴行程 |
X-travel |
250mm |
370mm |
|
Z轴行程 |
Z-travel |
1340mm |
1460mm |
|
X轴快移速度 |
X rapid speed |
3000mm/min |
7500mm/min |
|
Z轴快移速度 |
Z rapid speed |
6000mm/min |
9000mm/min |
|
*小设定单位 |
Min. Input |
0.001mm |
0.001mm |
|
X向定位精度 |
X positioning accuracy |
±0.01mm |
±0.015mm |
|
Z向定位精度 |
Z positioning accuracy |
±0.015mm |
±0.02mm |
|
X向重复定位精度 |
X repositioning accuracy |
±0.006mm |
±0.006mm |
|
Z向重复定位精度 |
Z repositioning accuracy |
±0.01mm |
±0.01mm |
|
刀架工位数 |
Nos. of tool position |
8 |
6 or 8 |
|
刀具*大截面 |
Max.section of tool |
25x25mm |
32x32mm |
|
尾座 |
TAILSTOCK |
|
|
|
尾座套筒直径 |
Quill diameter |
ø75mm |
ø90mm |
|
尾座套筒行程 |
Quill travel |
ø180mm |
ø235mm |
|
尾座套筒内孔锥度 |
Quill taper |
MT5 |
MT5 |
|
电机 |
MOTOR |
|
|
|
主电机功率 |
Main motor power |
7.5KW |
7.5KW |
|
冷却泵功率 |
Coolant pump power |
0.09KW |
0.09KW |
|
外形尺寸及重量 |
DIMENSION AND WEIGHT |
|
|
|
外形尺寸（长x宽x高） |
Overall dimension(LxWxH) |
3100x1220x1930mm |
3120x1900x1870mm |
|
包装箱尺寸（长x宽x高） |
Packing size(LxWxH) |
3400x1400x2240mm |
3300x2300x2200mm |
|
净重/毛重 |
NW/GW |
2350/2750kg |
2100/3600kg |
