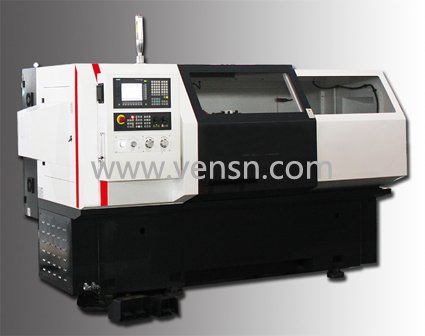

数控系统：华中系统、广数系统、法那克系统、西门子系统等可根据用户选配。
|
产品型号 |
Model |
VSL40 |
VSL50 |
|
产品编号 |
Code No |
C1304000 |
C1305000 |
|
机床电器 |
Electrical connection |
|
|
|
总功率 |
Total connection |
11KW |
15KW |
|
主电机功率 |
Main motor power |
7.5KW |
9KW |
|
冷却泵功率 |
Coolant pump power |
370W |
370W |
|
加工范围 |
Capacity |
|
|
|
床身上*大回转直径 |
Swing over bed |
Ø400mm |
Ø500mm |
|
拖板上*大回转直径 |
Swing over cross slide |
Ø240mm |
Ø280mm |
|
两顶尖距离 |
Center width |
850mm |
1000mm |
|
中心高 |
Center height |
200mm |
250mm |
|
主轴 |
Spindle |
|
|
|
主轴鼻端 |
Spindle nose |
A2-6 |
A2-8 |
|
主轴内孔锥度 |
Spindle taper |
MT6 |
MT6 |
|
主轴通孔直径 |
Spindle bore |
Ø66mm(液压为Ø51mm） |
Ø100mm |
|
主轴转速 |
Spindle speed range |
30-2500mm |
30-1600mm |
|
卡盘 |
Lathe chuck |
Ø200mm |
Ø250mm |
|
刀架 |
Tool changer |
|
|
|
刀架形式 |
Type |
electric |
electric |
|
刀架工位数 |
Numbers of tool position |
8 |
6/8 |
|
刀具*大截面 |
Section of tool (Max) |
20×20mm |
25×25mm |
|
行程 |
Travel |
|
|
|
X轴 |
X axis |
240mm |
330mm |
|
Z轴 |
Z axis |
750mm |
1000mm |
|
X轴快移速度 |
X axis rapid speed |
6000mm/min |
5000mm/min |
|
Z轴快移速度 |
Z axis rapid speed |
8000mm/min |
8000mm/min |
|
精度 |
Accuracy |
|
|
|
定位精度 |
Position accuracy |
±0.025mm |
±0.025mm |
|
重复定位精度 |
Repeat position accuracy |
±0.01mm |
±0.01mm |
|
尾架 |
Tailstock |
|
|
|
尾架锥度 |
Tailstock taper |
MT4 |
MT4 |
|
尾架套筒直径 |
Tailstock sleeve diameter |
Ø55mm |
Ø75mm |
|
尾架套筒行程 |
Tailstock sleeve travel |
120mm |
150mm |
|
尺寸 |
Dimensions |
|
|
|
外形尺寸(L×W×H) |
Overall dimension (L×W×H) |
2540×1420×1750mm |
3320×1600×1830mm |
|
包装尺寸(L×W×H) |
Packing size (L×W×H) |
2760×1630×1953mm |
3520×1800×2030mm |
|
净重/毛重 |
Net weight/Gross weight |
2400/2550KG |
3500/3750KG |
|
水箱容积 |
Tank capacity |
110L |
200L |
