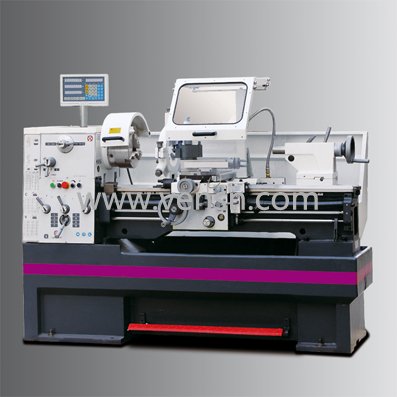

Type |
VSLU 4210 V |
|
Item No |
P340 3150 |
|
Machine datas |
|
|
Electrical connection |
400 V / 3 Ph ~50 Hz |
|
Total connected value |
5.5 kW |
|
Coolant equipment |
100 W |
|
Working areas |
|
|
Centre height |
210 mm |
|
Centre width |
1'000 mm |
|
Turning Ø over lathe bed |
420 mm |
|
Turning Ø over cross slide |
250 mm |
|
Turning Ø in the bed bridge |
590 mm |
|
Length of bed bridge |
260 mm |
|
Bed width |
250 mm |
|
Speeds |
|
|
Spindle speed |
30 - 550 min-1 / 160 - 3'000 min-1* |
|
Number of steps |
2 steps, electrically adjustable speed |
|
Headstock |
|
|
Spindle taper |
MT 6 |
|
Spindle seat |
Camlock DIN ISO 702-2 Nr. 6 |
|
Spindle drilling, rod passage |
Ø 52 mm |
|
Slide |
|
|
Travel top slide |
140 mm |
|
Travel cross slide |
230 mm |
|
Longitudinal feed in the range of |
0.05 - 1.7 mm/rev; |
|
Transverse feed in the range of |
0.025 - 0.85 mm/rev; |
|
Pitch - Metric in the range of |
0.2 - 14 mm/rec; |
|
Pitch - Inch in the range of |
72 - 2 threads/1“; |
|
Trapezoid thread in the range of |
8-44; |
|
Modular thread in the range of |
0.3-3.5; |
|
Quadruple tool holder seat height |
Max. 20 x 20 mm |
|
Tailstock |
|
|
Tailstock seat |
MT 4 |
|
Tailstock - sleeve travel |
120 mm |
|
Dimensions |
|
|
Length x width x height |
2025mmx915x1615mm |
|
Net weight |
1'550 kg |
