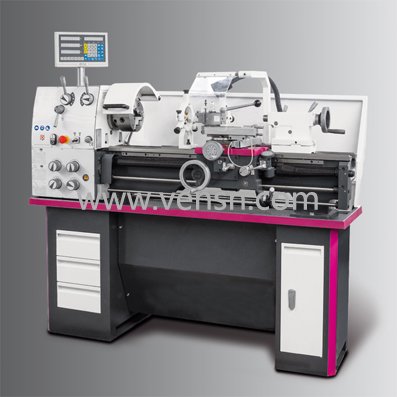

Type |
VSLU 3209V |
|
Item No |
P340 3110 |
|
Machine datas |
|
|
Electrical connection |
230 V / 1 Ph ~50 Hz |
|
Motor power |
1.5 kW |
|
Working areas |
|
|
Centre height |
160 mm |
|
Centre width |
920 mm |
|
Turning Ø over lathe bed |
320 mm |
|
Turning Ø over cross slide |
190 mm |
|
Turning Ø in the bed bridge |
430 mm |
|
Length of bed bridge |
230 mm |
|
Bed width |
181 mm |
|
Speeds |
|
|
Spindle speed |
12 - 2’250 min-1 |
|
Number of steps |
9 steps |
|
Headstock |
|
|
Spindle taper |
MT 5 |
|
Spindle seat |
Camlock DIN ISO 702-2 Nr. 4 |
|
Spindle drilling, rod passage |
Ø 38 mm |
|
Slide |
|
|
Travel top slide |
85 mm |
|
Travel cross slide |
162 mm |
|
Longitudinal feed in the range of |
0.052 - 1'392 mm/rev; 32 feeds |
|
Transverse feed in the range of |
0.014 - 0.380 mm/rev ;32 feeds |
|
Pitch - Metric in the range of |
0.4 - 7 mm;26 thread pitches |
|
Pitch - Inch in the range of |
56 - 4 threads/1“;34 thread pitches |
|
Quadruple tool holder seat height |
16 x 16 mm |
|
Tailstock |
|
|
Tailstock seat |
MT 3 |
|
Tailstock - sleeve travel |
100 mm |
|
Dimensions |
|
|
Length X Width x Height |
1'685 x 750 x 1'550 mm |
|
Weight |
410 kg |
