VSLX280M/VSLX280MV --- 车床
产品分类：数控车床铣床加工中心
产品型号：VSLX280M/VSLX280MV
品牌：文圣
产地：上海
价格：询价
服务咨询：
电话：021-55151269
邮箱：vensn88@163.com
在线QQ：

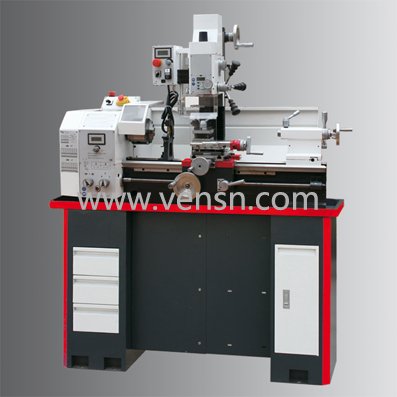

VSLX280M/VSLX280MV型 车床
|
型号 |
Model |
VSLX280 M |
VSLX280 MV |
|
产品编号 |
Code No. |
PX4328000 |
PX4328100 |
|
车床 |
LATHE |
|
|
|
床身上*大回转直径 |
Swing over bed |
ø280mm |
ø280mm |
|
两顶尖中心距 |
Distance between centers |
700mm |
700mm |
|
主轴孔径 |
Spindle bore |
ø26mm |
ø26mm |
|
主轴锥度 |
Spindle taper |
MT4 |
MT4 |
|
主轴转速 |
Spindle speeds |
125-2000rpm |
50-2200rpm |
|
尾架套筒锥度 |
Tailstock taper |
MT2 |
MT2 |
|
公制螺距 |
Pitch-metric |
0.2-3.5mm |
0.2-3.5mm |
|
英制螺距 |
Pitch-inch |
8-56TPI |
8-56TPI |
|
电机功率 |
Motor power |
850W |
1.1KW |
|
钻铣床 |
MILL&DRILL |
|
|
|
*大钻孔直径 |
Max.drilling capacity |
ø20mm |
ø20mm |
|
*大面铣能力 |
Face milling capacity(Max.) |
ø63mm |
ø63mm |
|
*大立铣能力 |
End milling capacity(Max.) |
ø20mm |
ø20mm |
|
主轴手动升降行程 |
Spindle travel manually |
185mm |
185mm |
|
主轴锥度 |
Spindle taper |
MT2/M10 |
MT2/M10 |
|
主轴转速 |
Spindle speed |
100-3000rpm |
100-3000rpm |
|
套筒行程 |
Sleeve travel |
50mm |
50mm |
|
T型槽尺寸/长度/数量 |
T-Slots size / Distance / Number |
12mm / 63mm / 3 |
12mm / 63mm / 3 |
|
Z轴行程 |
Z-axis travel |
280mm |
280mm |
|
Y轴行程 |
Y-axis travel |
170mm |
170mm |
|
电机功率 |
Motor power |
750W |
750W |
|
包装尺寸 |
Packing size |
1370x750x1010mm |
1370x750x1010mm |
|
净重/毛重 |
Net weight / Gross weight |
266/290kg |
266/290kg |
