型号 |
Model |

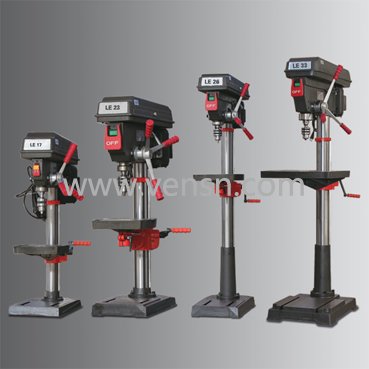

VSLE 17 |
VSLE 23 |
VSLE 26 |
VSLE 33 |
|
货号 |
Item No |
3101700 |
D3102302（230V） |
D3102600 |
D3103300 |
|
货号 |
Item No |
|
D3102303（400V） |
|
|
|
电器总容量 |
Electrical connection |
|
|
|
|
|
电机功率 |
Motor |
500W 230V~50Hz |
750W 230V/400V~50Hz（400V） |
750W 400V~50Hz |
1.1KW 400V~50Hz |
|
钻孔直径 |
Drilling capacity |
|
|
|
|
|
钻孔直径 |
Drilling capacity in steel (St. 37) |
ø16mm |
ø25mm |
ø25mm |
ø30mm |
|
连续钻孔直径 |
Continuous drilling cap. steel |
ø12mm |
ø20mm |
ø20mm |
ø25mm |
|
主轴 |
Spindle seat |
|
|
|
|
|
主轴锥度 |
Spindle seat |
MT2 |
MT2 |
MT3 |
MT4 |
|
主轴套筒直径 |
Spindle sleeve stroke |
ø65mm |
ø80mm |
ø85mm |
ø120mm |
|
主轴套筒行程 |
Throat |
152mm |
180mm |
210mm |
254mm |
|
转速 |
Speeds |
|
|
|
|
|
主轴转速 |
Spindle speeds |
500-2520rpm |
200-2440rpm |
200-2440rpm |
120-1810rpm |
|
转速级数 |
Number of steps |
5 steps |
12 steps |
12 steps |
9 steps |
|
工作台 |
Drilling table |
|
|
|
|
|
工作台尺寸 |
Table size Length x width |
235x220mm |
280x250mm |
330x290mm |
475x425mm |
|
T型槽 |
T-slot size |
12mm |
12mm |
14mm |
14mm |
|
工作台倾斜角度 |
Drilling table inclinable |
±45° |
±45° |
±45° |
±45° |
|
工作台旋转角度 |
Drilling table slewable |
360° |
360° |
360° |
360° |
|
主轴端面至工作台面*大距离 |
Distance spindle - table (max.) |
325mm |
360mm |
720mm |
695mm |
|
主轴端面至底座表面*大距离 |
Distance spindle - stand (max.) |
530mm |
610mm |
1230mm |
1180mm |
|
体积 |
Dimensions |
|
|
|
|
|
立柱尺寸 |
Column diameter |
60mm |
73mm |
80mm |
92mm |
|
外形尺寸 |
Length x width x height |
600x260x860mm |
650x320x1010mm |
700x350x1670mm |
860x480x1720mm |
|
包装尺寸 |
packing size(L×W×H) |
680x460x290mm |
815x530x325mm |
1430x545x290mm |
1435x645x325mm |
|
净重/毛重 |
Net weight/Gross weight |
36.5/40 kg |
63.5/66 kg |
81/85 kg |
132/140 kg |
