型号 |
Model |

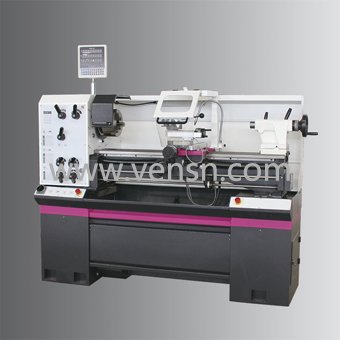

VSLM4010 |
|
货号 |
Item No. |
P4640300 |
|
电机功率 |
Motor power |
2.2kw |
|
水泵电机功率 |
Motor coolant pump |
100w |
|
主轴电机功率 |
Spindle Motor |
2.2kw |
|
主轴锥度 |
Spindle taper |
MK4 |
|
主轴类型 |
Spindle seat |
D5 |
|
主轴通孔直径 |
Spindle drilling, rod passage |
Ø53mm |
|
主轴中心高 |
Centre height |
200mm |
|
主轴中心距 |
Centre width |
1000mm |
|
床身上*大回转直径 |
Turning Ø over lathe bed |
Ø400mm |
|
拖板上*大回转直径 |
Turning Ø over cross slide |
Ø250mm |
|
主轴转速 |
Spindle speed |
2000/1255/755/460/300/190/155/70 rpm |
|
档位数 |
steps of spindle |
8 |
|
小拖板行程 |
Travel top slide |
98mm |
|
中拖板行程 |
Travel cross slide |
185mm |
|
纵向进给范围 |
Longitudinal feed in the range of |
0.014-0.38mm |
|
横向进给范围 |
Transverse feed in the range of |
0.052-1.392mm |
|
公制螺纹范围 |
Pitch - Metric in the range of |
0.4-7mm |
|
英制螺纹范围 |
Pitch - Inch in the range of |
56-4 |
|
刀架安装座*大高度 |
Tool holder seat height (max.) |
30mm |
|
尾架套筒直径 |
Tailstock seat |
Ø50mm |
|
尾架套筒行程 |
Tailstock - sleeve travel |
0-110mm |
|
外形尺寸 |
Length x width x height |
1950×820×1530mm |
|
净重 |
Net weight |
500kg |
|
毛重 |
Gross weight |
598kg |
