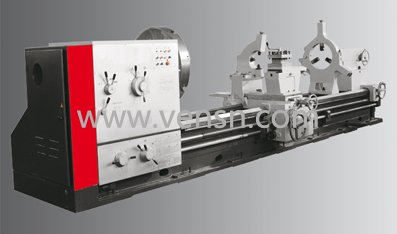

VSLA1400HM/VSLA1600HM型 车床
|
型号 |
MODEL |
VSLA1400HM |
VSLA1600HM |
|
货号 |
Item No. |
P4705100 |
P4707100 |
|
机床*大承重 |
Max.weight of workpiece |
8T |
8T |
|
床身上*大回转直径 |
Max.swing over bed |
Φ1400mm |
Φ1600mm |
|
横拖板上*大回转直径 |
Max.swing over cross slide |
Φ1000mm |
Φ1200mm |
|
两尖顶距离 |
Center distance |
1.5m 2m 3m 4m 5m 6m 8m 10m 12m |
1.5m 2m 3m 4m 5m 6m 8m 10m 12m |
|
床身宽度 |
Width of bed |
780mm |
780mm |
|
床头箱 |
HEAD STOCK |
|
|
|
主轴孔径 |
Spindle hole |
∮130mm |
∮130mm |
|
主轴锥孔 |
Spindle taper |
140# |
140# |
|
主轴转速范围 |
Spindle speeds |
3.15-315r/min或2.5-250r/mm.转数 种数：正21种，反12种 |
3.15-315r/min或2.5-250r/mm.转数 种数：正21种，反12种 |
|
进给箱 |
GEAR BOX-THREADS&FEEDS |
|
|
|
快速进给：纵向/横向 |
Rapid feed:Long/Cross |
3400mm/min,1700mm/min |
3400mm/min,1700mm/min |
|
刀架 |
TOOL-POST |
|
|
|
主轴中心至刀具安装面距离 |
Distance between Center & Tool |
48mm |
48mm |
|
刀具截面 |
Tool section |
45*45mm |
45*45mm |
|
拖板 |
CARRIAGE |
|
|
|
中拖板*大行程 |
Cross slide travel |
650mm |
650mm |
|
小拖板*大行程 |
Top slide travel |
280mm |
280mm |
|
尾座 |
TAILSTOCK |
|
|
|
尾座套筒直径 |
Sleeve diameter |
∮160mm |
∮160mm |
|
尾座套筒锥度 |
Sleeve taper |
80# or MT6 |
80# or MT6 |
|
尾座套筒*大行程 |
Sleeve travel |
300mm |
300mm |
|
电机 |
MOTOR |
|
|
|
主电机 |
Main motor |
22KW |
22KW |
|
冷却泵电机 |
Coolant motor |
0.15KW |
0.15KW |
|
快速进给电机 |
Rapid feed motor |
1.5KW |
1.5KW |
