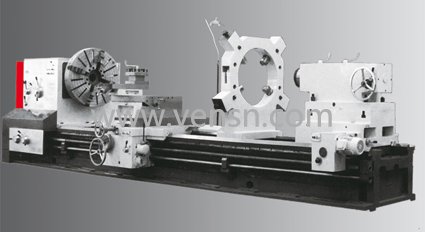

VSLA1280HH/VSLA1480HH/VSLA1680HH/VSLA1980HH/VSLA2080HH型
车床
|
型号 |
MODEL |
VSLA1280HH |
VSLA1480HH |
VSLA1680HH |
VSLA1980HH |
VSLA2080HH |
|
货号 |
Item No. |
P4604200 |
P4606200 |
P4608200 |
P4609200 |
P4615200 |
|
机床*大承重 |
Max workpiece weight |
12T |
12T |
12T |
12T |
12T |
|
床身上*大回转直径 |
Max swing over bed |
Φ1280mm |
Φ1480mm |
Φ1680mm |
Φ1980mm |
Φ2080mm |
|
横拖板上*大回转直径 |
Max swing over cross slide |
Φ840mm |
Φ1040mm |
Φ1240mm |
Φ1500mm |
Φ1600mm |
|
两尖顶距离 |
Center distance |
2m 3m 4m 5m 6m 8m 10m 12m |
|
马鞍上*大回转直径 |
Max swing over gap |
Φ1580mm |
Φ1780mm |
Φ1980mm |
Φ2280mm |
Φ2380mm |
|
马鞍槽端面到主轴法兰盘端面距离 |
Valid length of gap |
600mm |
600mm |
600mm |
600mm |
600mm |
|
床身宽度 |
Bed width |
1100mm |
1100mm |
1100mm |
1100mm |
1100mm |
|
床头箱 |
Headstock |
|
|
|
|
|
|
主轴孔径 |
Spindle bore |
∮130mm |
∮130mm |
∮130mm |
∮130mm |
∮130mm |
|
主轴锥孔 |
Spindle taper |
140# |
140# |
140# |
140# |
140# |
|
主轴转速范围 |
Spindle speeds |
3-315rpm或2-200rpm或2-250rpm |
|
进给箱 |
GEAR BOX-THREADS & FEEDS |
|
|
|
|
|
|
快速进给：纵向/横向 |
Rapid feed:long/cross |
3400mm/min,1700mm/min |
|
刀架 |
TOOL POST |
|
|
|
|
|
|
主轴中心至刀具安装面距离 |
Distance between Center&Tool |
48mm |
48mm |
48mm |
48mm |
48mm |
|
刀具截面 |
Tool section |
45*45mm |
45*45mm |
45*45mm |
45*45mm |
45*45mm |
|
拖板 |
CARRIAGE |
|
|
|
|
|
|
中拖板*大行程 |
Cross slide travel |
860mm |
860mm |
860mm |
860mm |
860mm |
|
小拖板*大行程 |
Top slide travel |
280mm |
280mm |
280mm |
280mm |
280mm |
|
尾座 |
TAILSTOCK |
|
|
|
|
|
|
尾座套筒直径 |
Sleeve diameter |
∮260mm |
∮260mm |
∮260mm |
∮260mm |
∮260mm |
|
尾座套筒锥度 |
Sleeve taper |
80# |
80# |
80# |
80# |
80# |
|
尾座套筒*大行程 |
Sleeve travel |
300mm |
300mm |
300mm |
300mm |
300mm |
|
电机 |
MOTOR |
|
|
|
|
|
|
主电机 |
Main drive motor |
30KW |
30KW |
30KW |
30KW |
30KW |
|
冷却泵电机 |
Coolant pump motor |
0.15KW |
0.15KW |
0.15KW |
0.15KW |
0.15KW |
|
快速进给电机 |
Rapid feed motor |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
|
尾架电机 |
Tailstock motor |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
1.5KW |
