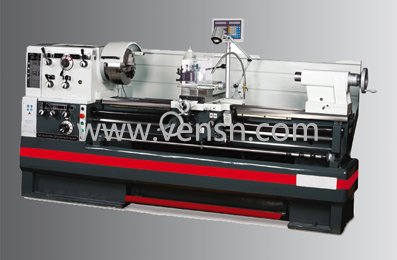

VSLC410/VSLC460/VSLC510/VSLC560型 车床
|
型号 |
Model |
VSLC 410/VSLC 460 |
VSLC 510/VSLC 560 |
|
产品编号 |
Code No. |
P4241300/P4246400 |
P4251400/P4256400 |
|
加工范围 |
CAPACITY |
|
|
|
床身上*大回转直径 |
Swing over bed |
ø410mm/ø460mm |
ø510mm/ø560mm |
|
拖板上*大回转直径 |
Swing over cross slide |
ø220mm/ø270mm |
ø305mm/ø355mm |
|
马鞍板上*大回转直径 |
Turning ø without bed bridge |
ø640mm/ø690mm |
ø735mm/ø785mm |
|
花盘前马鞍有效长度 |
Length of gap |
165mm |
170mm |
|
两顶尖中心距 |
Admits between |
1000mm/1500mm |
1500mm/1500mm |
|
主轴中心高 |
Center height |
205mm/230mm |
255mm/280mm |
|
床身宽度 |
Width of bed |
300mm |
350mm |
|
主轴 |
HEADSTOCK |
|
|
|
主轴端部 |
Spindle nose |
D1-6 |
D1-8 |
|
主轴通孔直径 |
Spindle bore |
ø58mm/ø80mm(For optional) |
ø80mm//ø105mm(For optional) |
|
主轴内孔锥度 |
Spindle taper |
MT6 |
MT7 |
|
主轴转速范围 |
Range of spindle speed |
25-2000rpm |
25-1600rpm |
|
进给及螺纹 |
FEEDS AND THREADS |
|
|
|
小拖板行程 |
Top slide travel |
128mm |
130mm |
|
中拖板行程 |
Cross slide travel |
285mm |
316mm |
|
车刀刀杆*大截面 |
Max.Section of tool |
25x25mm |
25x25mm |
|
公制螺纹范围 |
Threads metric pitches |
0.1-14mm |
0.2-14mm |
|
英制螺纹范围 |
Threads imperial pitches |
2-112TPI |
2-112TPI |
|
尾座 |
TAILSTOCK |
|
|
|
尾座套筒直径 |
Quill diameter |
ø60mm(2-5/16") |
ø75mm |
|
尾座套筒行程 |
Quill travel |
120mm(4-3/4") |
180mm |
|
尾座套筒内孔锥度 |
Quill taper |
MT4 |
MT5 |
|
电机 |
MOTOR |
|
|
|
主电机功率 |
Main motor power |
4 / 5.5KW |
7.5KW |
|
冷却泵功率 |
Coolant pump power |
0.125KW |
0.1KW |
|
外形及重量 |
DIMENSION AND WEIGHT |
|
|
|
包装箱尺寸（长x宽x高） |
Packing size(LxWxH) |
2850x1120x1700mm |
2960x1130x1820mm |
|
净重/毛重 |
N.W./G.W. |
1670/1980kg 2020/2385kg |
2335/2700kg 2370/2740kg |
