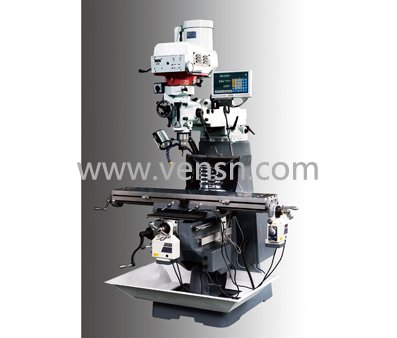

型号 |
Model |
VSLMM200/VSLMM200V |
VSLMM400/VSLMM400V |
|
产品编号 |
Code No. |
Z2320000/Z2320100 |
Z2340000/Z2340100 |
|
加工范围 |
CAPACITY |
|
|
|
钻孔直径 |
Drilling capacity(max.) |
Ø18mm |
Ø24mm |
|
面铣直径 |
Milling capacity cutter head(max.) |
Ø75mm |
Ø100mm |
|
立铣直径 |
Milling capacity end mill cutter(max.) |
Ø20mm/Ø25mm(V) |
Ø20mm/Ø25mm(V) |
|
主轴 |
SPINDLE HOLDING FIXTURE |
|
|
|
主轴锥度 |
Spindle taper |
R8/NT40 |
R8/NT40 |
|
套筒直径 |
Sleeve diameter |
Ø86mm |
Ø86mm |
|
套筒行程 |
Sleeve travel |
127mm |
127mm |
|
钻铣头 |
DRILL-MILL HEAD |
|
|
|
机头倾斜功能(左及右) |
Head incline(L-R) |
±90° |
±90° |
|
机头倾斜功能(前及后) |
Head lincline(back-forth) |
±45° |
±45° |
|
主轴套筒自动进给 |
Automatic spindle sleeve feed |
0.04/0.08/0.15mm/rev |
0.04/0.08/0.15mm/rev |
|
速度 |
SPEEDS |
|
|
|
主轴转速 |
Spindle speed |
65-4550 rpm / 65-4500rpm(V) |
80-5440 rpm / 65-4500rpm(V) |
|
十字工作台 |
CROSS TABLE |
|
|
|
工作台（长×宽） |
Tabel(LxW) |
230x1245mm / 230x1246mm(V) |
254x1270mm / 254x1370mm(V) |
|
X轴自动行程 |
X-axis travel automatic |
730mm/690mm(V) |
700mm/820mm(V) |
|
Y轴手动行程 |
Y-axis travel manual |
315mm/310mm(V) |
380mm/410mm(V) |
|
Z轴行程 |
Z-axis travel |
405mm/390mm(V) |
385mm/400mm(V) |
|
T型槽尺寸宽度/距离/数量 |
T-slot size/distance/number |
16mm/64mm/3/16mm/63mm/3(V) |
16mm/64mm/3/16mm/63mm/3(V) |
|
主轴端面至工作台面*大距离 |
Distance spindle-cross table(max.) |
450mm/405mm(V) |
465mm/405mm(V) |
|
主轴轴线至机身*大距离 |
Distance spindle to machine body(Max.) |
440mm |
620mm |
|
主轴轴线至机身*小距离 |
Distance spindle to machine body(Min.) |
213mm |
260mm |
|
电机 |
ELECTRIC SUPPLY |
|
|
|
电机功率 |
Motor |
2.2KW/3Ph/50Hz/380V
2.2KW/3Ph/50Hz/400V(V) |
2.2KW/3Ph/50Hz
2.2KW/3Ph/50Hz/400V(V) |
|
冷却泵电机功率 |
Motor coolant pump |
40W/90W(V) |
40W/90W(V) |
|
外形尺寸及重量 |
DIMENSIONS AND WEIGHT |
|
|
|
外形尺寸（长×宽×高） |
size(L×W×H) |
1460x1600x2032mm/
1650x1700x2010mm(V) |
1600x1700x2100mm/
1905x1880x2235mm(V) |
|
包装尺寸（长×宽×高） |
packing size(L×W×H) |
/ |
/ |
|
净重/毛重 |
Net weight/Gross weight |
1000/1150kg / 1000/1100kg(V) |
1310/1490kg / 1200/1300kg(V) |
