型号 |
Model |

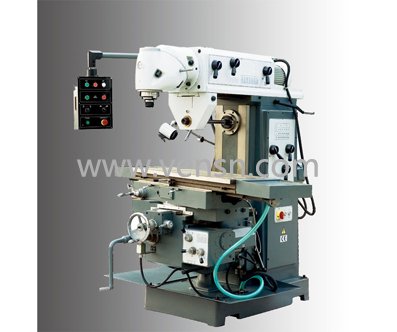

VSLF 200 |
|
货号 |
Code No. |
Z2220000 |
|
钻孔直径 |
Drilling capacity(max.) |
ø40mm |
|
面铣直径 |
Milling capacity cutter head(max.) |
ø200mm |
|
立铣直径 |
Milling capacity end mill cutter(max.) |
ø30mm |
|
主轴锥度 |
Spindle taper |
ISO50 |
|
主轴转速范围（级数） |
Spindle speed range(steps) |
58~1800rpm(50Hz) 60~1750rpm(60Hz) |
|
铣头回转 |
Head rotation |
±35° |
|
滑枕行程 |
Ram travel |
500mm |
|
Z轴行程 |
Z-axis travel manual |
400mm |
|
Y轴行程 |
Y-axis travel manual |
300mm |
|
X轴行程 |
X-axis travel manual |
1000mm |
|
T型槽尺寸宽度/距离/数量 |
T-slot size/distance/number |
14mm / 95mm / 5 |
|
工作台纵向电机进给速度 |
Table power feed speed range(X) |
22~420mm/min |
|
工作台横向电机进给速度 |
Table power feed speed range(Y) |
22~393mm/min |
|
工作台竖向电机进给速度 |
Table power feed speed range(Z) |
10~168mm/min(50Hz) |
|
主轴孔中心到工作台面距离 |
Distance between spindle and table |
0~400mm |
|
主轴孔中心到悬梁平面距离 |
Distance between spindle and ram |
175mm |
|
电机功率 |
Motor power |
4KW |
|
工作台尺寸 |
Working table size |
1320x360mm/1600x360mm(optional) |
|
总体长度x宽度x高度 |
Overall dimension(LxWxH) |
2260x2070x2250mm |
|
净重/毛重 |
Net weight / Gross weight |
2250/2450kg |
