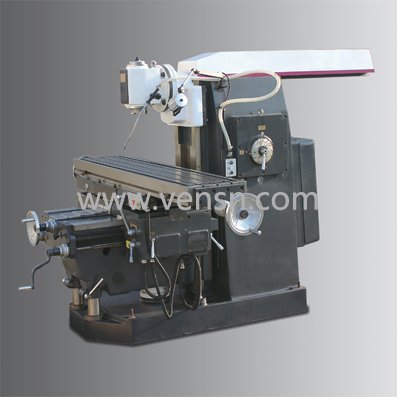

型号 |
Model |
VSLF 300 |
|
货号 |
Code No. |
Z2230000 |
|
电压 |
Voltage |
400 V/50 HZ/3 PH |
|
主电机功率 |
Main motor power |
11 KW |
|
进给电机功率 |
Feed motor speed |
3 KW |
|
冷却泵功率 |
Cooling pump power |
0.15 KW |
|
工作台面积 |
Worktable area |
425x2000 mm |
|
T型槽 |
T slots (N×W×D) |
3x18x100 mm |
|
工作台承重 |
Table Load-bearing |
800 Kg |
|
工作台行程-纵向（手动/机动） |
Trip of worktable longitudinal(manual/mobile) |
1200/1180 mm |
|
工作台行程-横向（手动/机动） |
Trip of worktable transverse(manual/mobile) |
410/400 mm |
|
工作台行程-升降（手动/机动） |
Trip of worktable movements(manual/mobile) |
460/450 mm |
|
工作台*大旋转角度 |
Max. rotary angle of table |
±45° |
|
工作台进给级数 |
Feed series workstations |
15 |
|
工作台进给范围-纵向 |
Feed scope workstations longitudinal |
10-1250 mm/min |
|
工作台进给范围-横向 |
Feed scope workstations transverse |
10-1250 mm/min |
|
工作台进给范围-升降 |
Feed scope workstations movements |
2.5-315 mm/min |
|
快速进给范围 |
Rapid feed ranges |
X:3200 mm/min |
|
Y/Z:800/3200 mm/min |
|
主轴到悬梁底距离 |
Distance from spindle center to arm |
212 mm |
|
工作台中心到导轨距离 |
Distance between table center to vertical guide way |
450 mm |
|
拉杆直径 |
Arbor diameter |
24 mm |
|
主轴端面到工作台面*小距离 |
Min. distance from spindle center to table |
30 mm |
|
主轴孔锥度 |
Spindle hole taper |
ISO 50 7:24 |
|
主轴孔直径 |
Diameter of spindle hole |
Ø69.95 mm |
|
主轴中心至工作台距离 |
Face to workstations from the spindle |
30-480 mm |
|
主轴变速级数 |
Spindle speed series |
20 |
|
主轴变速范围 |
Spindle speed range |
18-1400 rpm |
|
主电机功率 |
Main electrical power |
11 KW |
|
包装尺寸 |
Overall size |
2614x2497x2043 mm |
|
外形尺寸 |
Size of machine |
2700x2500x2200 mm |
|
净重/毛重 |
Net weight/ Gross weight |
5200 kg/5850 kg |
