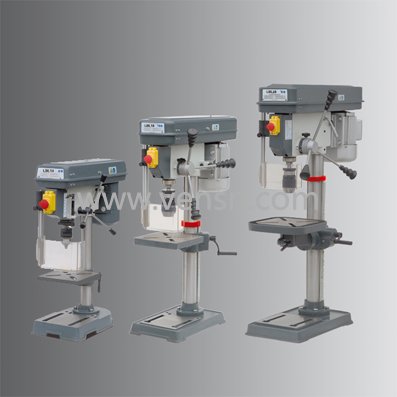

VSLDL16/VSLDL16/VSLDL20型 钻床
|
型号 |
Model |
VSLDL 13 |
VSLDL 16 |
VSLDL 20 |
|
产品编号 |
Code No. |
D3101300 |
D3101600 |
D3102000 |
|
加工范围 |
CAPACITY |
|
|
|
|
钻孔直径 |
Drilling capacity(max.) |
ø13mm |
ø16mm |
ø20mm |
|
工作范围 |
WORKING RANGE |
|
|
|
|
套筒直径 |
Sleeve diameter |
ø40mm |
ø42mm |
ø47mm |
|
套筒行程 |
Sleeve travel |
50mm |
60mm |
80mm |
|
主轴轴线至立柱表面距离 |
Distance spindle-column |
104mm |
126mm |
169mm |
|
主轴 |
SPINDLE HOLDING FIXTURE |
|
|
|
|
主轴锥度 |
Spindle holding fixture |
B16 |
MT2 |
MT2 |
|
速度 |
SPEEDS |
|
|
|
|
主轴转速 |
Spindle speeds |
580-2650rpm |
220-2450rpm
660-2500rpm
|
210-2220rpm |
|
转速级数 |
Number of steps |
5 steps |
12 or 5 steps |
12 steps |
|
工作台 |
DRILLING TABLE |
|
|
|
|
工作台尺寸（长X宽） |
Table size(LxW) |
160x160mm |
200x195mm |
300x300mm |
|
T型槽尺寸 |
T-slot size |
/ |
/ |
14mm |
|
主轴端面至工作台面*大距离 |
Distance spindle-table(max.) |
200mm |
350mm |
390mm |
|
底座尺寸(长X宽） |
Working surface stand(LxW) |
200x314mm |
355x235mm |
455x270mm |
|
主轴端面至底座表面*大距离 |
Distance spindle-stand(max.) |
290mm |
524mm |
640mm |
|
电机 |
ELECTRIC SUPPLY |
|
|
|
|
电机功率 |
Motor |
350W |
450W |
550W |
|
外形及重量 |
DIMENSIONS AND WEIGHT |
|
|
|
|
包装尺寸（长×宽×高） |
packing size(L×W×H) |
445x345x255mm |
700x440x230mm |
820x490x300mm |
|
净重/毛重 |
Net weight/Gross weight |
15/17kg |
27/29kg |
47/51kg |
