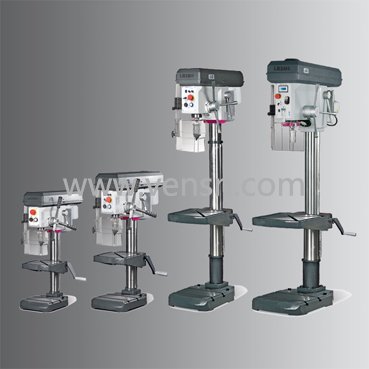

VSLB16H/VSLB24H/VSLB28H/VSLB34H型 钻床
|
型号 |
Model |
VSLB16H |
VSLB24H |
VSLB28H |
VSLB34H |
|
产品编号 |
Code No. |
D3201600 |
D3202400 |
D3202800 |
D3203400 |
|
电压 |
Electrical connection |
400 V /3 Ph ~50 Hz |
230V/1Ph - 400V/3Ph |
400 V/3 Ph ~50 Hz |
400 V/3 Ph ~50 Hz |
|
加工范围 |
CAPACITY |
|
|
|
|
|
钻孔直径 |
Drilling capacity (max.) |
ø16mm |
ø24mm |
ø28mm |
ø34mm |
|
工作范围 |
WORKING RANGE |
|
|
|
|
|
套筒直径 |
Sleeve diameter |
ø47mm |
ø47mm |
ø52mm |
ø68mm |
|
套筒行程 |
Sleeve travel |
65mm |
85mm |
107mm |
160mm |
|
主轴 |
SPINDLE HOLDING FIXTURE |
|
|
|
|
|
主轴锥度 |
Spindle holding fixture |
MT2 |
MT2 |
MT3 |
MT4 |
|
主轴中心线至立柱表面距离 |
Distance spindle-column |
132.5mm |
164mm |
200mm |
285.5mm |
|
速度 |
SPEEDS |
|
|
|
|
|
主轴转速 |
Spindle speeds |
450-3500rpm |
350-4000rpm |
260-4075rpm |
145-4800rpm |
|
转速级数 |
Number of steps |
5 steps |
7steps |
16steps |
9x2steps |
|
工作台 |
DRILLING TABLE |
|
|
|
|
|
工作台尺寸（长×宽） |
Table size(L×W) |
230×245mm |
280×300mm |
340×360mm |
426×400mm |
|
T型槽尺寸 |
T-slot size |
12mm |
14mm |
14mm |
14mm |
|
主轴端面至工作台面*大距离 |
Distance spindle-table(max.) |
370mm |
445mm |
927mm |
790mm |
|
底座尺寸(长×宽） |
Working surface stand(L×W) |
260×362mm |
280x264mm |
364x320mm |
388×370mm |
|
主轴端面至底座表面*大距离 |
Distance spindle-stand(max.) |
485mm |
595mm |
1282mm |
1025mm |
|
电机 |
ELECTRIC SUPPLY |
|
|
|
|
|
电机功率 |
Motor |
550W |
850W |
850W |
2.2/1.5KW |
|
外形尺寸及重量 |
DIMENSIONS AND WEIGHT |
|
|
|
|
|
外形尺寸 |
size(L×W×H) |
541×370×848mm |
665×435×1000mm |
715×450×1720mm |
918×585×1895mm |
|
包装尺寸 |
packing size(L×W×H) |
600×360×1000mm |
760×440×1170mm |
770×500×1940mm |
965×600×2140mm |
|
净重/毛重 |
Net weight/Gross weight |
55/70kg |
92/116kg |
142/178kg |
260/313kg |
