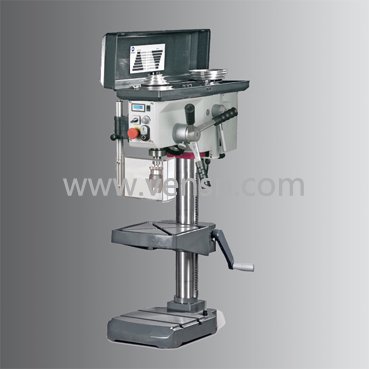

VSLB16HV/VSLB24HV/VSLB28HV/VSLB34HV型
无级变速钻床
|
型号 |
Model |
VSLB16HV |
VSLB24HV |
VSLB28HV |
VSLB34HV |
|
产品编号 |
Code No. |
3401600 |
3402400 |
3402800 |
3403400 |
|
电压 |
Electrical connection |
230V/1Ph~50Hz |
230V/1Ph~50Hz |
230V/1Ph~50Hz |
230V/1Ph~50Hz |
|
加工范围 |
CAPACITY |
|
|
|
|
|
钻孔直径 |
Drilling capacity (max.) |
ø16mm |
ø24mm |
ø28mm |
ø34mm |
|
工作范围 |
WORKING RANGE |
|
|
|
|
|
套筒直径 |
Sleeve diameter |
ø47mm |
ø47mm |
ø52mm |
ø68mm |
|
套筒行程 |
Sleeve travel |
65mm |
85mm |
107mm |
160mm |
|
主轴 |
SPINDLE HOLDING FIXTURE |
|
|
|
|
|
主轴锥度 |
Spindle holding fixture |
MT2 |
MT2 |
MT3 |
MT4 |
|
主轴中心线至立柱表面距离 |
Distance spindle-column |
132.5mm |
164mm |
200mm |
285.5mm |
|
速度 |
SPEEDS |
|
|
|
|
|
主轴转速 |
Spindle speeds |
90-6000rpm |
100-5950rpm |
35-5600rpm |
40-5000rpm |
|
转速级数 |
Number of steps |
5steps |
4steps |
12steps |
9steps |
|
工作台 |
DRILLING TABLE |
|
|
|
|
|
工作台尺寸（长×宽） |
Table size(L×W) |
230×245mm |
300x280mm |
358x340mm |
426×400mm |
|
T型槽尺寸 |
T-slot size |
12mm |
14mm |
14mm |
14mm |
|
主轴端面至工作台面*大距离 |
Distance spindle-table(max.) |
370mm |
445mm |
927mm |
790mm |
|
底座尺寸(长×宽） |
Working surface stand(L×W) |
260×362mm |
280x264mm |
364x320mm |
388×390mm |
|
主轴端面至底座表面*大距离 |
Distance spindle-stand(max.) |
485mm |
595mm |
1282mm |
1025mm |
|
电机 |
ELECTRIC SUPPLY |
|
|
|
|
|
电机功率 |
Motor |
1.5KW/230V/50Hz |
1.5KW/230V/50Hz |
1.5KW/230V/50Hz |
2.2KW/230V/50Hz |
|
外形尺寸及重量 |
DIMENSIONS AND WEIGHT |
|
|
|
|
|
外形尺寸（长×宽×高） |
size(L×W×H) |
550×370×850mm |
665x435x1000mm |
705x475x1755mm |
918×595×1930mm |
|
包装尺寸（长×宽×高） |
packing size(L×W×H) |
600×360×1000mm |
755x440x1175mm |
765x500x1940mm |
970×600×2140mm |
|
净重/毛重 |
Net weight/Gross weight |
67/82kg |
96/122kg |
166/202kg |
275/328kg |
